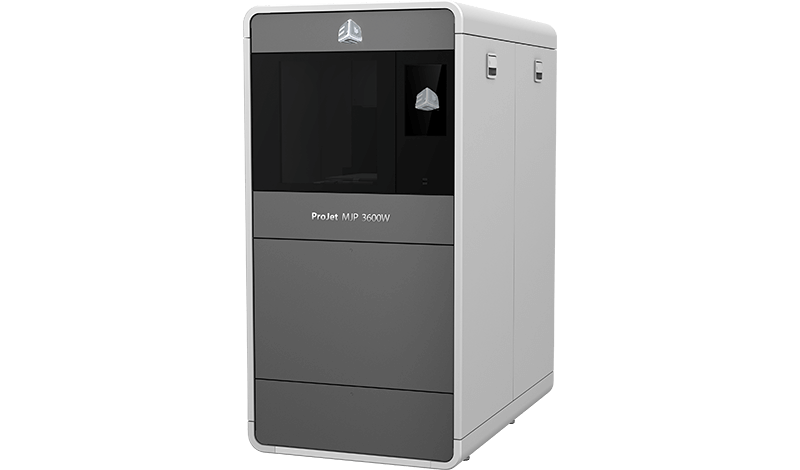

ProJet 3600W
Technické parametre
Key Features
Maximum build envelope capacity (HD mode): 298mm (W) x 185mm (D) x 203 mm (H)
100% wax metal casting patterns for use with standard processes
3 resolution modes: maximum 750 x 750 x 1600 dpi; 16 µ layers
Podrobné informácie o technických parametroch
Tlačiareň
Režimy tlače
HD - High Definition
UHD - Ultra High Definition
XHD - Xtreme High Definition
Net Build Volume (xyz)
HD Mode: 298 x 185 x 203 mm (11.75 x 7.3 x 8 ")
UHD Mode: 152 x 185 x 203 mm (6 x 7.3 x 8 ")
XHD Mode: 152 x 185 x 203 mm (6 x 7.3 x 8 ")
Rozlíšenie
HD Mode: 375 x 450 x 790 DPI (xyz); 32 μlayers
UHD Mode: 750 x 750 x 890 DPI (xyz); 29 μ layers
XHD Mode: 750 x 750 x 890 DPI (xyz); 16 μ layers
Accuracy (typical)
±0.001-0.002 inch per inch (0.025-0.05 mm per 25.4 mm) of part dimension
E-mail Notice Capability
Yes
Electrical
100-127 VAC, 50/60 Hz, single-phase, 15A
200-240 VAC, 50 Hz, single-phase, 10A
Rozmery (Š x H x V)
3D Printer Crated: 826 x 1430 x 1740 mm (32.5 x 56.3 x 68.5 in)
3D Printer Uncrated: 749 x 1194 x 1511 mm (29.5 x 47 x 59.5 in )
Hmotnosť
3D Printer Crated: 433 kg
3D Printer Uncrated: 299 kg
3DSPRINT™ Software
Easy build job set-up, submission and job queue management; Automatic part placement and build optimization tools;
Part stacking and nesting capability; Extensive part editing tools; Automatic support generation; Job statistics reporting tools
Network Compatibility
Network ready with 10/100 Ethernet interface
Client Hardware Recommendation
1.8 GHz with 1GB RAM (OpenGL support 64 mb video RAM) or higher
Client Operating System
Windows® 7, Windows 8 or Windows 8.1 (Service Pack)
Input Data File Formats Supported
STL, CTL, OBJ, PLY, ZPR, ZBD, AMF, WRL, 3DS, FBX, IGES, IGS, STEP, STP, MJPDDD
Rozsah prevádzkovej teploty
18-28 ºC
Noise
< 65 dBa estimated (at medium fan setting)
Certifications
CE
Spotrebný materiál
Build Materials
VisiJet M3 CAST
VisiJet M3 Hi-Cast
Support Material
VisiJet S400
Material Packaging
Build and support materials:
In clean 3.86 lbs (1.75 kg) bottles
(printer holds up to 2 with auto-switching)
